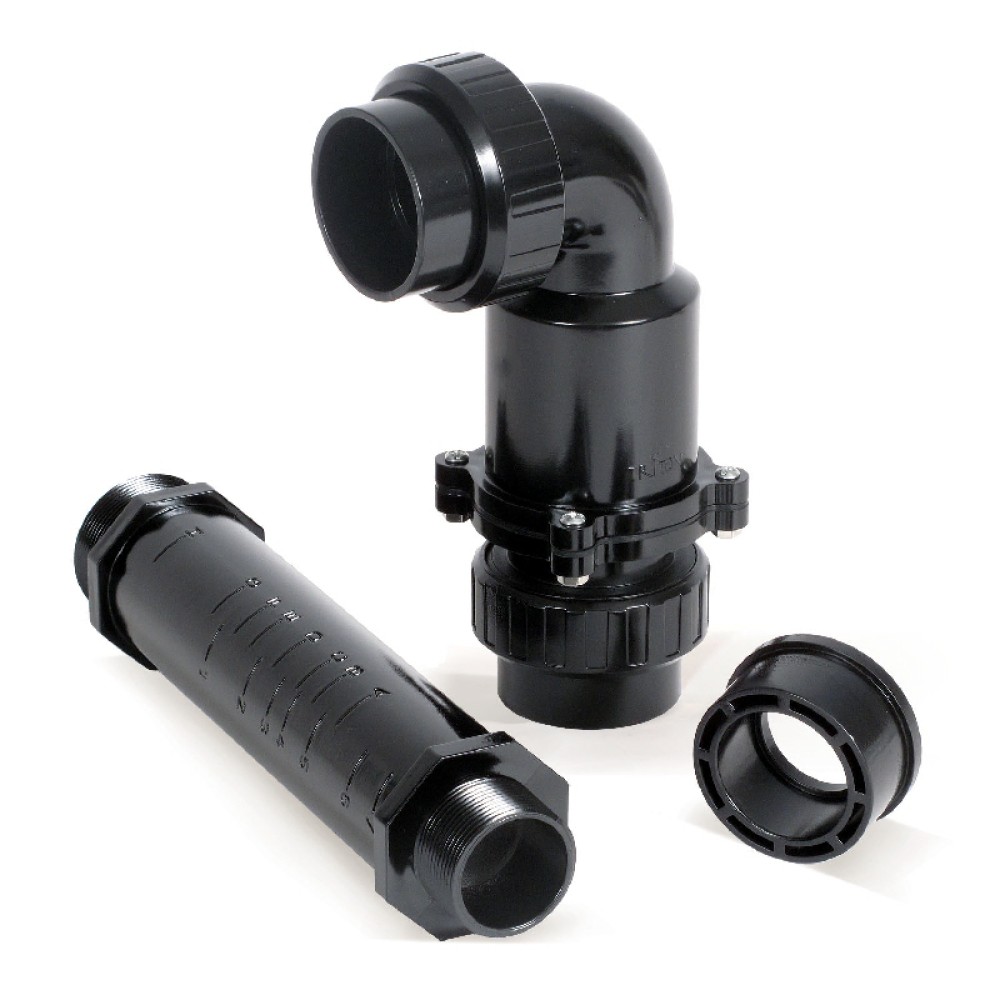

Atlantic’s Triton™ Check Valve is the only check valve designed exclusively for the water garden industry.

The ‘swing style’ Triton Check Valve features a 2” socket union on the inlet, 2” and 1½” socket unions for the outlet, a molded-in 90˚ elbow, and a slim design that allows clearance when installed with direct drive pumps. If simplicity and innovation is what you seek, Triton delivers!

Model: TR215CV

Valve Dimensions: 5-5/8”L x 3½”W x 10”H
Inlet: 2” socket
Outlet: 1½” or 2” Sch 40 socket

Pipe Dimension: 1-17/8”L x 25/8”W
Inlet: 1½” or 2” MIPT
Outlet: 2” Sch 40 pipe

Includes: 2” check valve with unions, 1 ½” outlet fitting, 1” thru 1 ½” tubing adapter, discharge pipe and extension.

Triton™ Check Valve Features:

1. Features a full flow swing valve with inlet and outlet unions and a replaceable gasket.

2. Includes discharge fittings for 1½” and 2” PVC pipe and 1” – 1½” metered ASTM standard tubing.

3. Reversible discharge pipe will work with all 1½” and 2” discharge TidalWave™ pumps and Atlantic equipment.

4. Molded “perfect-cut” dimension to identify proper lengths for Atlantic product and cut-to-fit 1” increments on the reverse side.

5. Discharge extension for use with taller Atlantic equipment.

6. Maximum assembled height of 23” (from the pump discharge to the center of the outlet pipe), but can be extended to any length using 2” Sch 40 pipe and fittings.
