EXT External Pond Pumps from Aquascape- The EXT series of External/Inline Pond Pumps by Aquyascape a

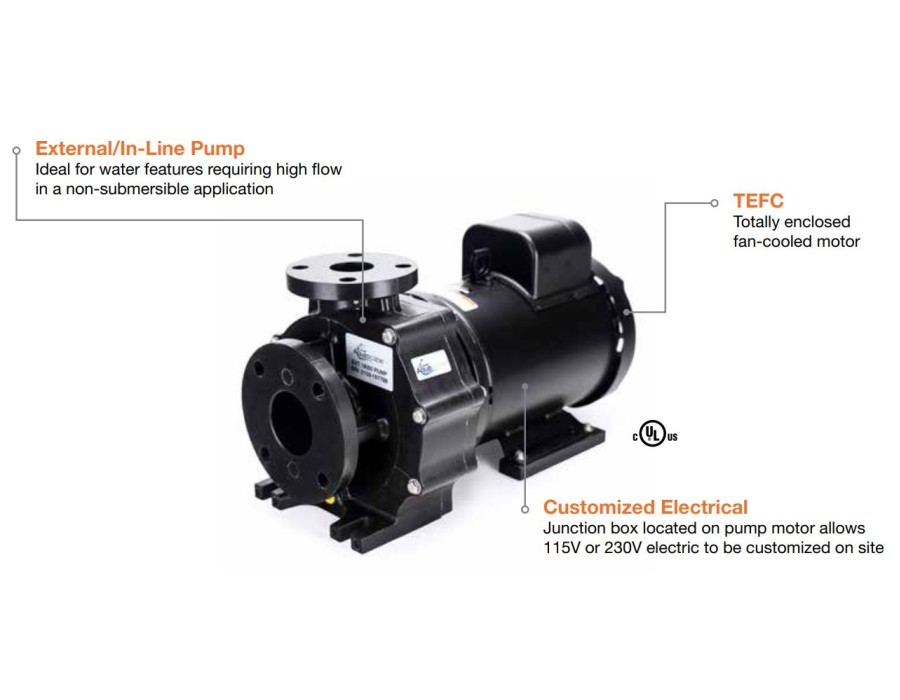

The EXT series of External/Inline Pond Pumps by Aquyascape are ideal for water feature applications requiring high flow with high efficiency in a non-submersible style pump. This pumps oil-free, low RPM, fan-cooled motor provided quite operation and a long life.

Two Models To Choose From
Available in 115/230 volt single pase or 230/460 volt three phase power

EXT 12000 115/230 Volt - Single Phase Model 45049 Maximum Flow: 12,500 GPH / 47,318 LPH Maximum Head: 21' Motor Type/HP: 143JM / 3/4 hp Wattage: 1,100 Amperage: 115V - 10 A / 230V - 5 A Cord Length: 20' Discharge Diameter: 2" Inlet Diameter: 3" Ideal Pipe Diameter: 3" Pump Dimensions: 19.3"L x 11.9"W x 11.75"H Packaged Weight: 114 lbs	EXT 12000-3P 230/460V - Three Phase Model 45050 Maximum Flow: 12,500 GPH / 47,318 LPH Maximum Head: 21' Motor Type/HP: 143JM / 1 HP Wattage:736 Amperage: 230V - 3.2 A / 460V - 1.6 A Cord Length: no cord Discharge Diameter: 2" Inlet Diameter: 3" Ideal Pipe Diameter: 3" Pump Dimensions:19.3"L x 11.9"W x 11.75"H Packaged Weight: 115 lbs
EXT 18000 115/230 Volt - Single Phase Model 45051 Maximum Flow: 18,400 GPH / 69,652 LPH Maximum Head: 45' Wattage: 3,300 Amperage: 115V - 30 A / 230V - 15 A Motor Type/HP: 184JM / 3 HP Cord Length:No cord Discharge Diameter: 2" Inlet Diameter: 3" Ideal Pipe Diameter: 3" Pump Dimensions: 21.15"L x 12.9"W x 11.75"H Packaged Weight: 114 lbs	EXT 18000-3P 230/460V - Three Phase Model 45052 Maximum Flow: 18,400 GPH / 69,652 LPH Maximum Head: 45' Wattage: 1,932 Amperage: 230V - 8.4 A / 460V - 4.2 A Motor Type/HP: 184JM / 3 HP Cord Length: No cord Discharge Diameter: 2" Inlet Diameter: 3" Ideal Pipe Diameter: 3" Pump Dimensions: 21.9"L x 12.65" W x 11.75"H Packaged Weight: 115 lbs

Download EXT Series Manual

EXT pumps are installed near the water feature with the intake pulling from a pre-filtered source, such as a Pondless Waterfall Vault and the discharged water sent to wetland filters, waterfalls, or jets.
See diagram below.

Optional Plumbing Kits Available
Includes fittings, flanges, valves, and hardware to install the EXT pump at the perimeter of the pond’s edge.

It is important to set up the plumbing properly with the EXT pumps. Improper plumbing setups can lead to failure or damage to the pump. We recommend an Aquascape EXT Pump Plumbing Kit. The EXT Pump Plumbing Kit provides all the necessary fittings and valves to make the EXT pump easy to install, prime, and operate. Once primed, the pump can be turned on and off without priming if water remains in the suction line.

2" Plumbing Kit
Model 48027

3" Plumbing Kit
Model 48044

Plumbing kits include:

swing check valve provides pump suction intake to supply water to the EXT pump
union connection makes maintenance quick and easy
liner flange allows the plumbing to penetrate through the liner sub-surface making it easier to disguise the plumbing transitioning outside the edge of the pond
van stone flange connection on the pump intake and a 2″ van stone flange connection on the pump discharge make it easy to service the pump
priming port and ball valve included to make initial starting simple
bushing provides underground connection to 3″ Flexible PVC pipe

*all PVC pipe is sold separately
