The Eco-Series™ waterfall weirs are inexpensive yet durable spillways are an economical option for building a stream or waterfall in your pond or pondless water feature. The spillway attaches directly to a pond liner or reservoir for a watertight seal without silicone or separate flanges. Gravel/rocks can fill the spillway to create a natural looking waterfall.

Download instructions

Features

•  Roto-molded for excellent strength and durability

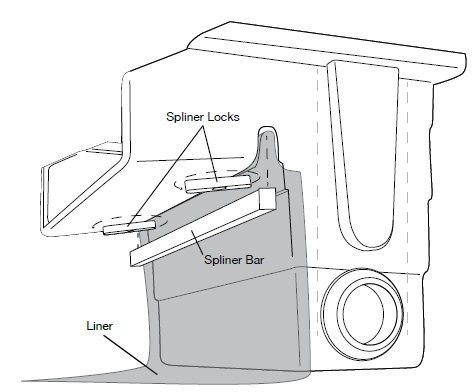

•  Easy to attach liner to spillway - no silicone, glue or tools required
•  Dual inlets with plug included on 18" and larger sizes allow plumbing from either or both sides.
•  4" diffuser tube lays across the bottom of the spillway to help even the flow in 18" and larger sizes
•  Gravel/rocks can fill the spillway to create a natural looking waterfall

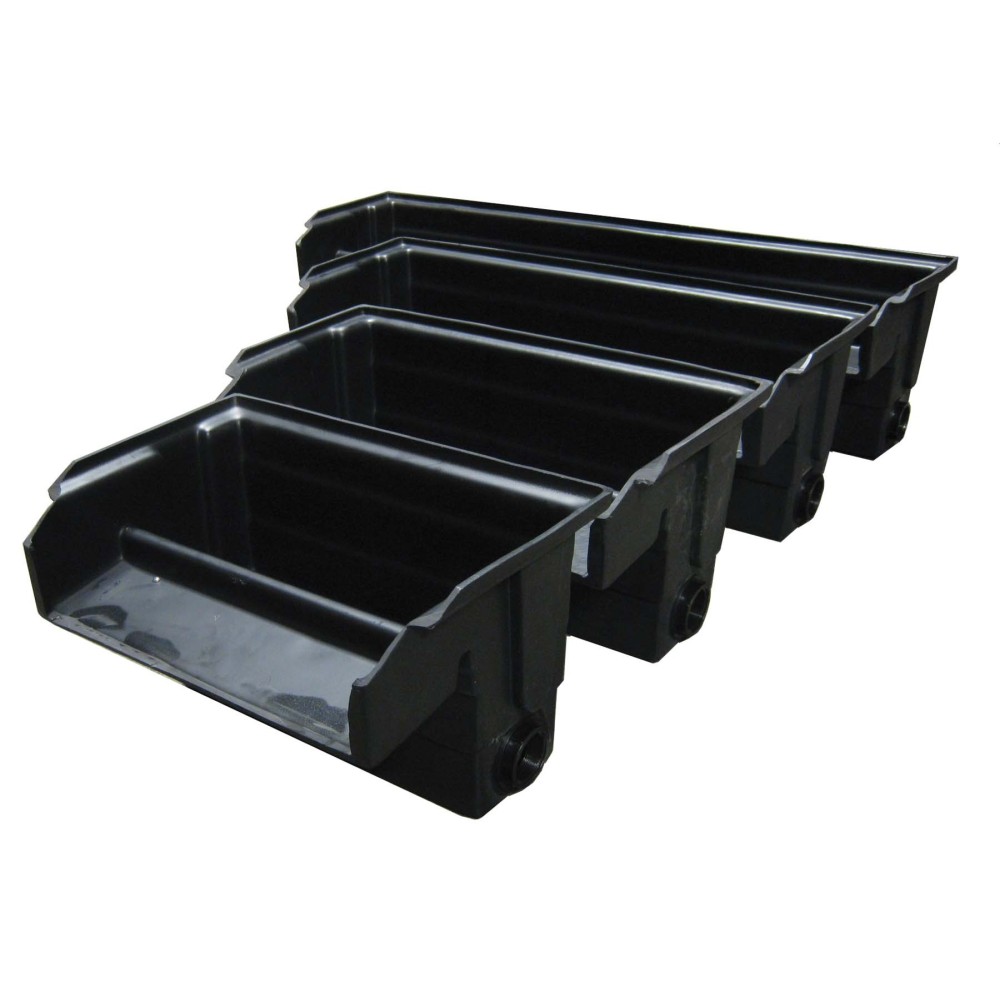

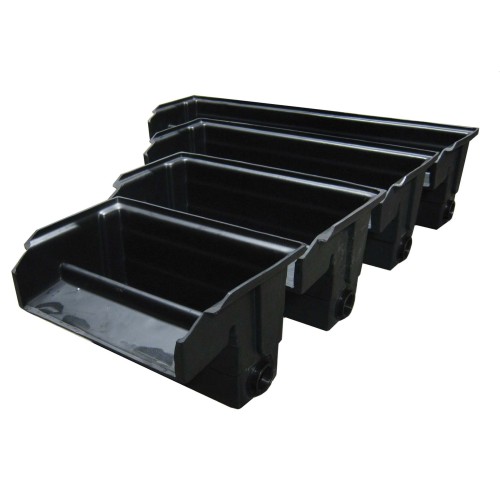

5 Sizes Available

12" Eco-Series Spillway
Model: CF12E
Dimensions: 16.5"W x 13"D x 9"H
Inlet Size: 1 x 0.5"

18" Eco-Series Spillway
Model:CF18E
Dimensions: 22"W x 14.5"D x 13.5"H
Inlet Size: 2 x 2"

23" Eco-Series Spillway
Model: CF23E
Dimensions: 27.5"W x 14.5"D x 13.5"H
Inlet Size: 2 x 2"

34" Eco-Series Spillway
Model: CF34E
Dimensions: 37.5"W x 14.5"D x 13.5"H
Inlet Size: 2 x 2"

48" Eco-Series Spillway
Model: CF48E
Dimensions: 52.5"W x 14.5"D x 13.5"H
Inlet Size: 2 x 2"
