ProAir™ Large Pond & Lake Aeration Systems by Airmax®

Our most popular aeration systems for ponds over 8 feet deep, the Pond Series™ Aeration Systems are powerful enough to aerate ponds up to 4 acres and can be adapted to fit uniquely shaped ponds for maximum aeration. Diverse Pond Series™ systems make aeration a breeze. The single diffuser PS10 system is excellent for smaller or regularly shaped ponds while the 4 diffuser PS40 tackles larger water bodies up to 4 acres, or ponds with an irregular shape that require precision plate placement for even circulation.

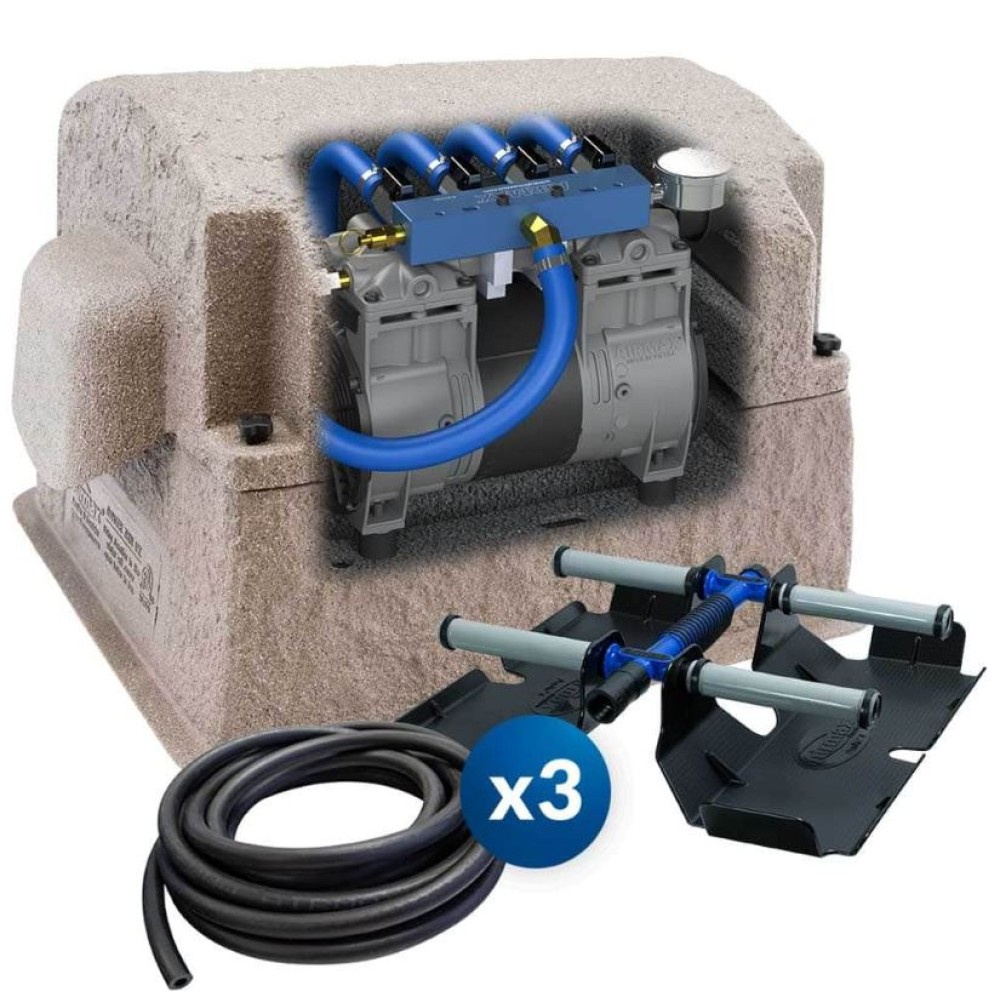

These complete sytems come with an outdoor cabinet with ventilation fan, quiet linear air pumps, valve controls to adjust airflow to multiple diffusers. The diffusers are self-weighted and have a sled-bottom design for easy installation. Weighted 3/8" airline is included, see details below..

Prices includes taxes and free shipping anywhere in Canada.

Four Models Available

One Diffuser System
Model: PS10
Aerates 1/4 acre ponds 6' - 9' deep
Aerates 1/2 acre ponds 9 - 12' deep
Aerates 1 acre ponds 12' - 21' deep

Includes:

One ProAir™ Weighted Diffuser Assemby
Max Depth of Diffusers: 21'
Airmax™ Composite Cabinet with Ventilation Fan
1/4 HP Rocking Piston Air Compressor
Pressure relief valve, pressure guage & air filter
Composite Cabinet with Fan & Pre-Wired Electrical Box
100' weighted airline

Running Amps: 1.0 Amps
Max CFM: 1.7
Cabinet Dimensions: 17" x 23" x 15"

Two Diffuser System
Model: PS20
Aerates 1/2 acre ponds 6' - 9' deep
Aerates 1 acre ponds 9 - 12' deep
Aerates 2 acres ponds 12' - 21' deep

Includes:

Two ProAir™ Weighted Diffuser Assemblies
Max Depth of Diffusers: 21'
Airmax™ Composite Cabinet with Ventilation Fan
1/3 HP Rocking Piston Air Compressor
Pressure relief valve, pressure guage & air filter
Two way valve manifold with nickel plated valves
Composite Cabinet with Fan & Pre-Wired Electrical Box
200' weighted airline

Running Amps: 3.8 Amps
Max CFM: 4.5
Cabinet Dimensions: 17" x 23" x 15"

Three Diffuser System
Model: PS30 *backorder, contact us for availability
Aerates 1.5 acre ponds 6' - 9' deep
Aerates 2 acre ponds 9 - 12' deep
Aerates 3 acre ponds 12' - 21' deep

Includes:

Three ProAir™ Weighted Diffuser Assemblies
Max Depth of Diffusers: 21'
Airmax™ Composite Cabinet with Ventilation Fan
1/3 HP Rocking Piston Air Compressor
Pressure relief valve, pressure guage & air filter
Three way valve manifold with nickel plated valves
Composite Cabinet with Fan & Pre-Wired Electrical Box
300' weighted airline

Running Amps: 3.8 Amps
Max CFM: 4.5
Cabinet Dimensions: 17" x 23" x 15"

Four Diffuser System
Model: PS40
Aerates 2 acre ponds 6' - 9' deep
Aerates 3 acre ponds 9 - 12' deep
Aerates 4 acre ponds 12' - 21' deep

Includes:

Four ProAir™ Weighted Diffuser Assemblies
Max Depth of Diffusers: 21'
Airmax™ Composite Cabinet with Ventilation Fan
3/4 HP Rocking Piston Air Compressor
Pressure relief valve, pressure guage & air filter
Four way valve manifold with nickel plated valves
Composite Cabinet with Fan & Pre-Wired Electrical Box
400' weighted airline

Running Amps: 4.4 Amps
Max CFM: 5.8
Cabinet Dimensions: 17" x 23" x 15"

Airmax® Composite Cabinet

1. An integrated cooling system utilizes a ventilation fan with rain shroud and high-density air intake pre-filter to distribute air evenly throughout the cabinet keeping the interior components clean, cool and dry.

2. Our attractive composite cabinet houses and protects the SilentAir™ Compressor from outdoor elements.

3. An elevated base protects the aeration hardware and electrical components from flooding and rainwater accumulation while the removable top ensures quick and easy access for inspection and maintenance.

4. Every Airmax® Composite Cabinet in our Shallow Water Series™ comes complete with a pre-wired electrical box and 6 foot power cord to provide power to the enclosed cooling fan and aeration compressor.

Cabinet Dimensions: 17" x 23" x 15"

The Airmax® Composite Cabinet comes with a lifetime warranty on the cabinet and a 2-year warranty on electrical components.

SilentAir™ RP Series Piston Compressor

1. High efficiency; continuous-duty rocking piston compressor.
2. Air Filter maximizes the life of the compressor
3. Rubber compressor mounts reduce noise and vibration for silent operation
4. Airflow manifold simplifies airflow management to individual diffusers (only available on systems with multiple diffusers)
5. Heat-resistant, 5/8" flex-tube protects against high temperatures of the compressor
6. Pressure gauge helps monitor system performance.
7. Pressure relief valve safeguards from back pressure.
8. Airline quick disconnects for easy system removal and storage.

The heart and soul of each of the Pond Series™ Aeration System, is the powerful yet energy efficient Rocking Piston Compressor which pupumps air through to your pond while remaining whisper-quiet and costing as little as $5 a month in electricity running 24/7.

Each compressor is fitted with an integrated Manifold with Ball Valves to simplify airflow-management and is mounted on vibration reducing rubber feet to ensure quiet operation. Each airline is equipped with Quick Disconnects for easy system removal and storage.

ProAir™4 Weighted Diffuser

1. PTFE non-stick membrane diffuser sticks provides the synergy of air stones while being virtually maintenance-free
2. Check valve prevents back pressure to compressor
3. Weighted design keeps diffuser submerged while maintaining an upright position during installation

Diffuser Size: 19”L x 19”W x5”H

Designed for maximum oxygen uptake, our ProAir™4 Weighted Diffuser incorporates four high-efficiency low-maintenance membrane sticks to release tiny oxygen bubbles into the water column.

Membrane diffusers posses the synergy of air stones without the headaches of cracking and acid-washing.

The ProAir™4 Weighted Diffuser has an integrated check valve to prevent back pressure on the compressor.

The innovative sled design keeps the ProAir™4 submerged while maintaining an upright position during installation.

EasySet™ Airline (Optional)

You can use regular 3/8" hose between the compressor and the diffusers but it will float and to make it sink you will need to attach weights to the hose. A better option is weighted airline that is a heavy-duty product that will sink to the bottom of your pond out of sight. A thick wall and lead-free construction make EasySet™ airline the perfect pond-safe choice. Resistant to rips and tears, EasySet™ airline is resilient against fishing hooks and foot traffic from swimmers, pets and wildlife. The 3/8” Weighted Airline is designed to stay submerged underwater and out of sight and is guaranteed not to float.
