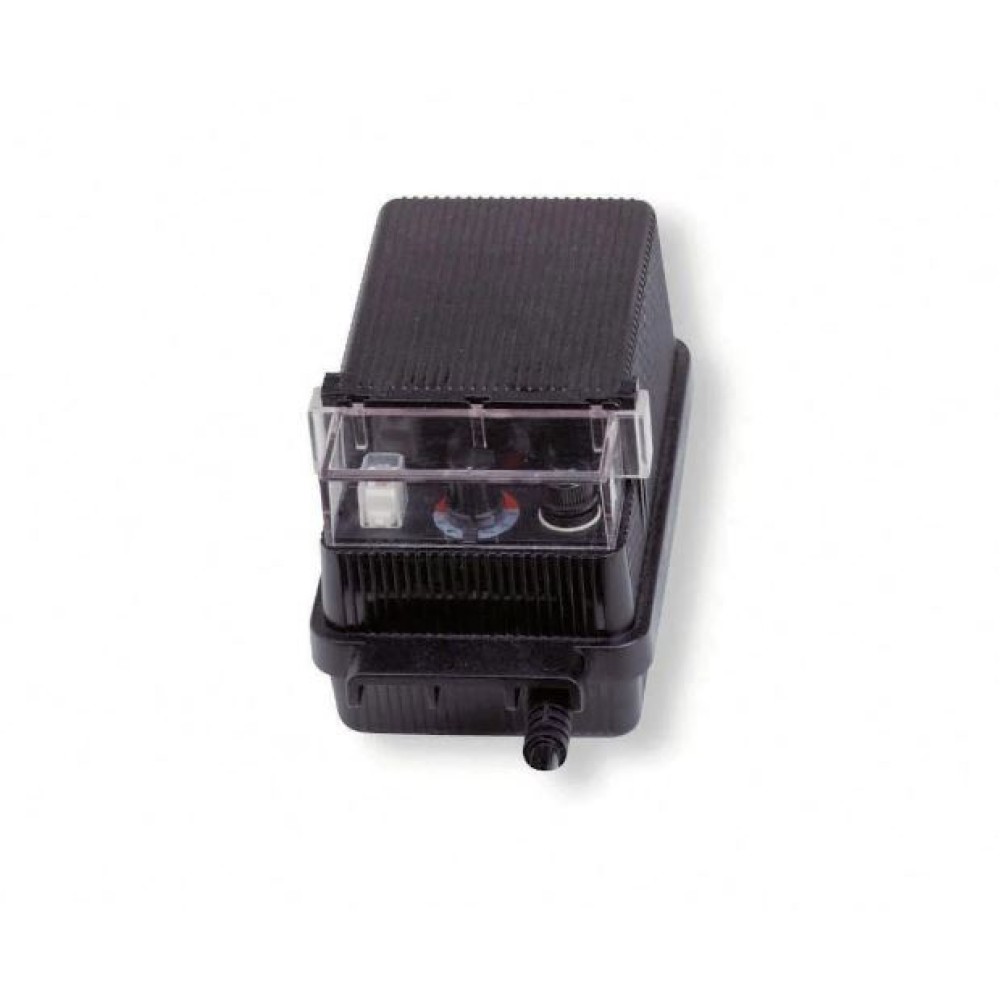

The Standard Series of Kichler Transformers, the 60 Watt and the 120 Watt, operates Kichler 12V Low Voltage Lighting systems.

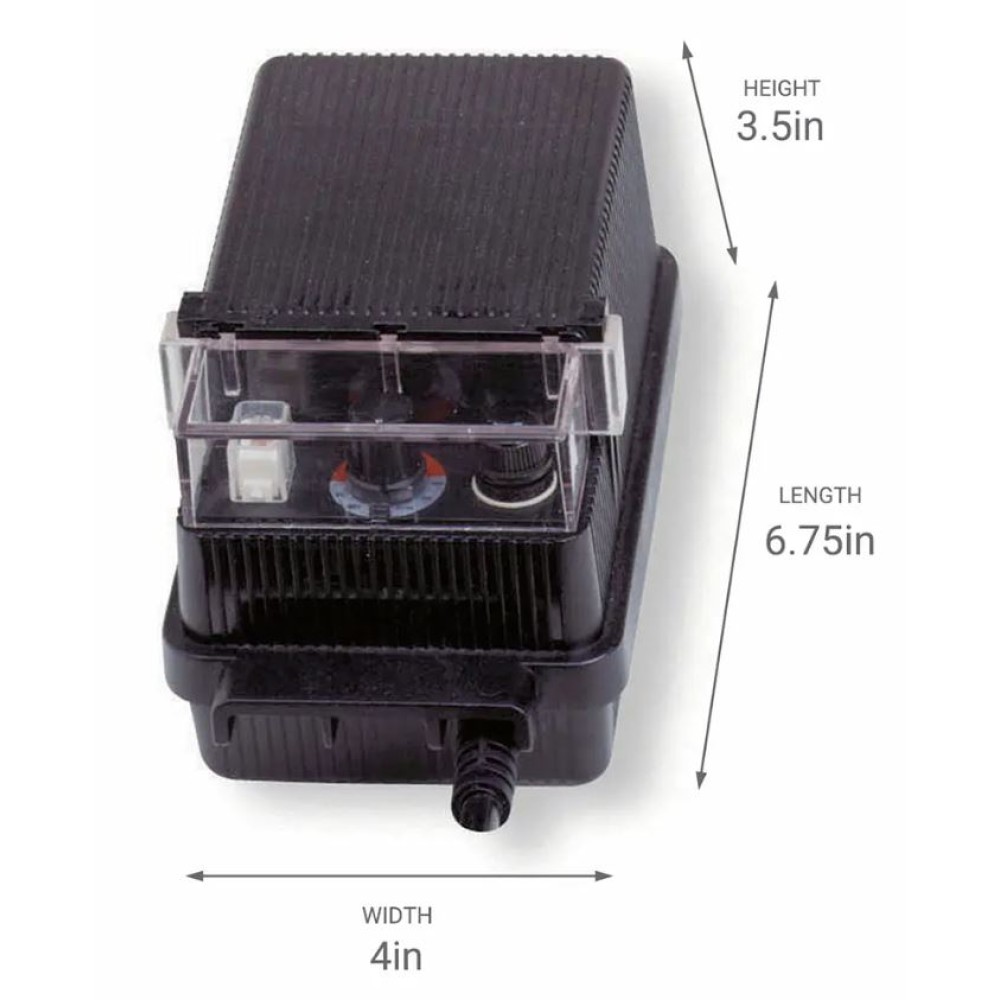

60 Watt Model: 15E60BK - Spec Sheet
120 Watt Model: 15E120BK -  Spec Sheet

TRANSFORMER INSTALLATION

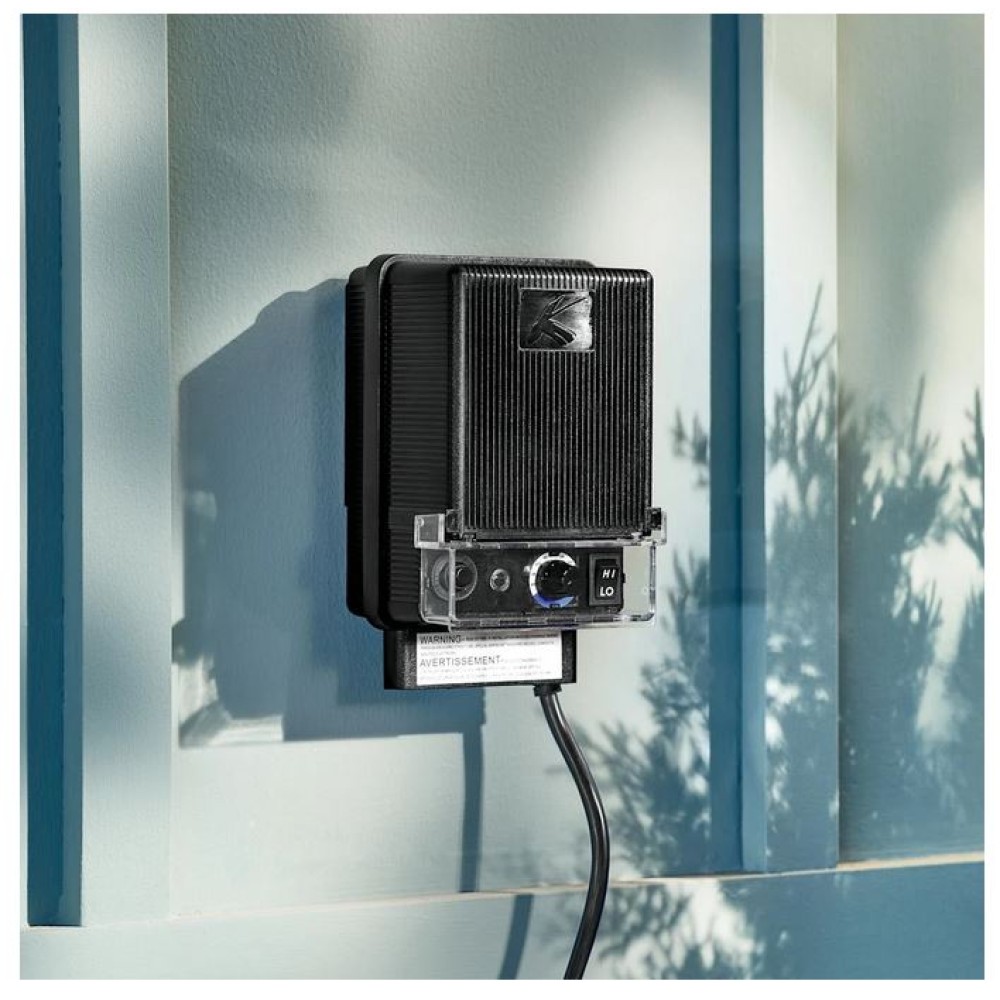

1) Determine desired location for mounting transformer.
2) Mount transformer at desired location using the hardware provided.
NOTE: Transformer should be at least one foot above ground level with wire terminals facing down.
3) Split cables (sold separately) approximately 3”, and strip 1/2” insulation off each wire.
4) Insert one of the bare wires into one of the holes on terminal block and tighten the corresponding screw. Repeat for remaining bare wire.
5) Plug power supply cord into standard 115/120 volt receptacle.
NOTE: The power supply cord must be plugged into a weather tight receptacle equipped with a Ground Fault Interrupter

PHOTO SENSOR
Bulb will light automatically when surroundings    turn dark. Sensor is equipped with a 30 second delay to avoid any error in response.
Bulb will turn off automatically if intense light is sensed for more then 30 seconds.

TIMER SETTINGS
OFF - NO POWER
ON - CONTINUOUS
ON AUTO - BULB TURNS ON AND OFF WITH PHOTO SENSOR 4H, 6H, 8H
BULB TURNS ON WITH PHOTO SENSOR - TURNS OFF 4, 6 OR 8 HOURS LATER.

CIRCUIT BREAKER
Circuit    breaker will trip if there is a short or if total wattage installed exceeds rated
wattage per circuit.

To reset breaker, push button in.
If the unit cycles on and off without regard to the timer setting, it should be checked by a qualified service person.

THERMAL PROTECTION
This unit is equipped with a thermal protector and will shut off if overheated.

HI-LOW SWITCH
For optimum light output the voltage at socket should be between 10 and 12 volts.
LOW: Use if total wattage is less than half of the transformer capacity, cable distances are short or if the starting voltage coming from the house is high.
HI: Use if the transformer is fully loaded (maximum wattage capacity), cable distances are long or if the starting voltage is low coming from the house.
