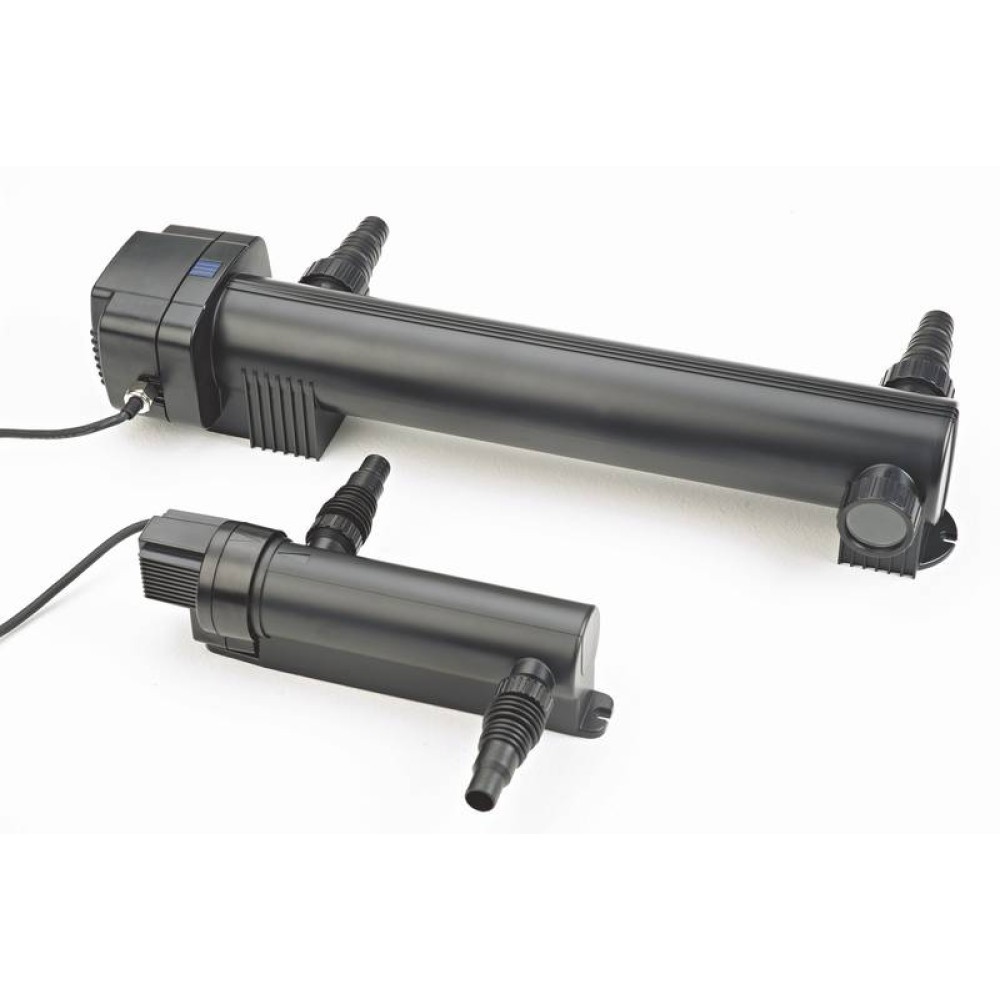

Vitronic™ Pond UV Clarifiers by Oase®

The Vitronic® series of UV pond clarifiers from OASE® are a simple, yet effective, UV clarifier designed to work with with almost any filter systems, although it was designed to fit seamlessly for OASE® BioSmart filters. The compact design allows for easy installation. The quick-lock ballast head makes changing the UV bulb a breeze. UV operation can be safely monitored through the included large aperture viewer. In conjunction with the BioSmart range, Vitronic becomes a modular part of the filter system, with no extra plumbing needed. The clarifier simply hooks onto the filter box with all accessories included.

9 Watt Vitronic clarifies ponds from 650 gallons up to 2,500 gallons.
18 Watt Vitronic clarifies ponds from 1,300 gallons up to 5,000 gallons.
36 Watt Vitronic clarifies ponds from 2,600 gallons up to 10,000 gallons.

The Vitronic® units can also be used as a stand-alone UV clarifier and connects easily to any typical pond pump system.

Elimination of suspended algae (green water)
Reduction of harmful bacteria and pathogen level
Visual function check of the UVC bulb
Quick release for easy bulb change and cleaning of the quartz glass
High quality workmanship with impact resistant plastic housing
Easy installation thanks to an extensive range of connection accessories
Includes high quality UVC bulb

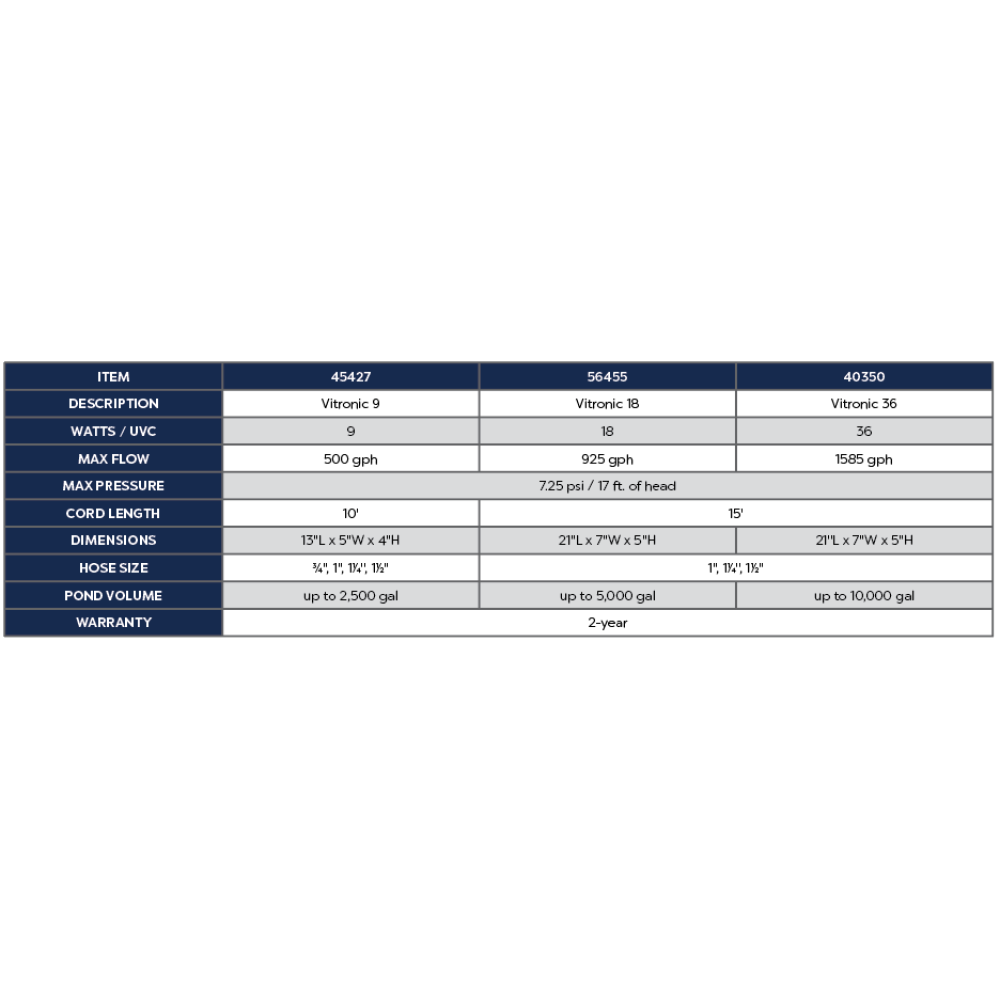

Three OASE Vitronic® Models Available

Vitronic 9 Watt UVC
OASE Model 45427

Suitable for pond volumes:

2,500 gallons (no fish)
1,250 gallons (goldfish)
650 gallons (koi)

Maximum flow past UV: 500 gph
UV bulb power consumption: 9 Watts (10 Watts Total Power Consumption)
Dimensions: 13" x 5" x 3.9"
Outlet Connections: 3/4" - 1 1/2"
Inlet Connections: 3/4" - 1.5"
Cord length: 10'
Weight: 3.9 lbs
Warranty: 2 Years

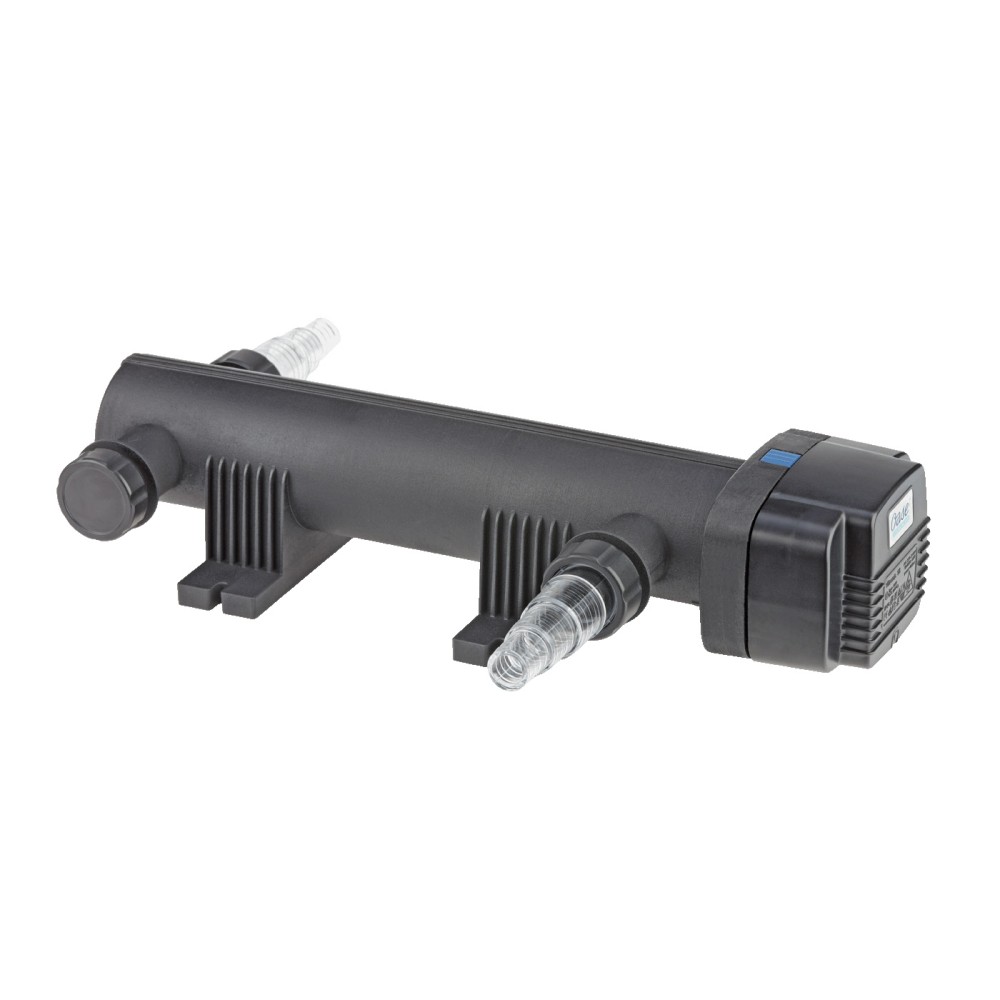

Vitronic 18 Watt UVC
OASE Model 56455

Suitable for pond volumes:

5,000 gallons (no fish)
2,500 gallons (goldfish)
1,300 gallons (koi)

Maximum flow past UV: 920 gph
UV bulb power consumption: 18 Watts (24 Watts Total Power Consumption)
Dimensions: 21" x 7.5" x 5.2"
Outlet Connections: 2 x 1" - 1 1/2"
Inlet Connections: 3/4" - 2"
Cord length: 15'
Weight: 4.7 lbs
Warranty: 2 Years

Vitronic 36 Watt UVC
OASE Model 40350

Suitable for pond volumes:

10,400 gallons (no fish)
5,200 gallons (goldfish)
2,600 gallons (koi)

Maximum flow past UV: 1585 gph
UV bulb power consumption: 36 Watts (42 Watts Total Power Consumption)
Dimensions: 21" x 7.5" x 5.2"
Outlet Connections: 2 x 1" - 1 1/2"
Inlet Connections: 3/4" - 2"
Cord length: 15'
Weight: 5.2 lbs
Warranty: 2 Years
