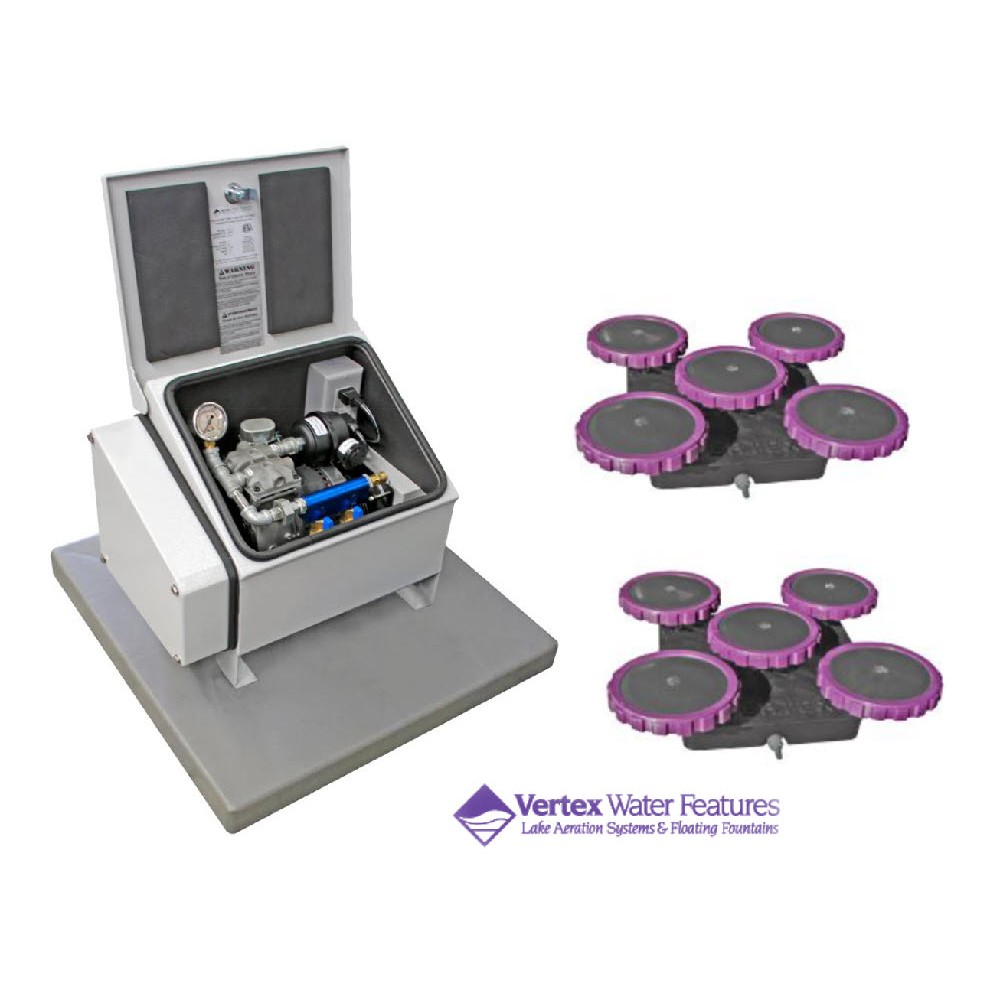

Vertex Pond and Lake Aeration Systems
Multiple system configurations and sizes from 1/4 HP to 4 HP are available. Contact us for information or questions regarding installation or for help sizing the correct Vertex aeration system.

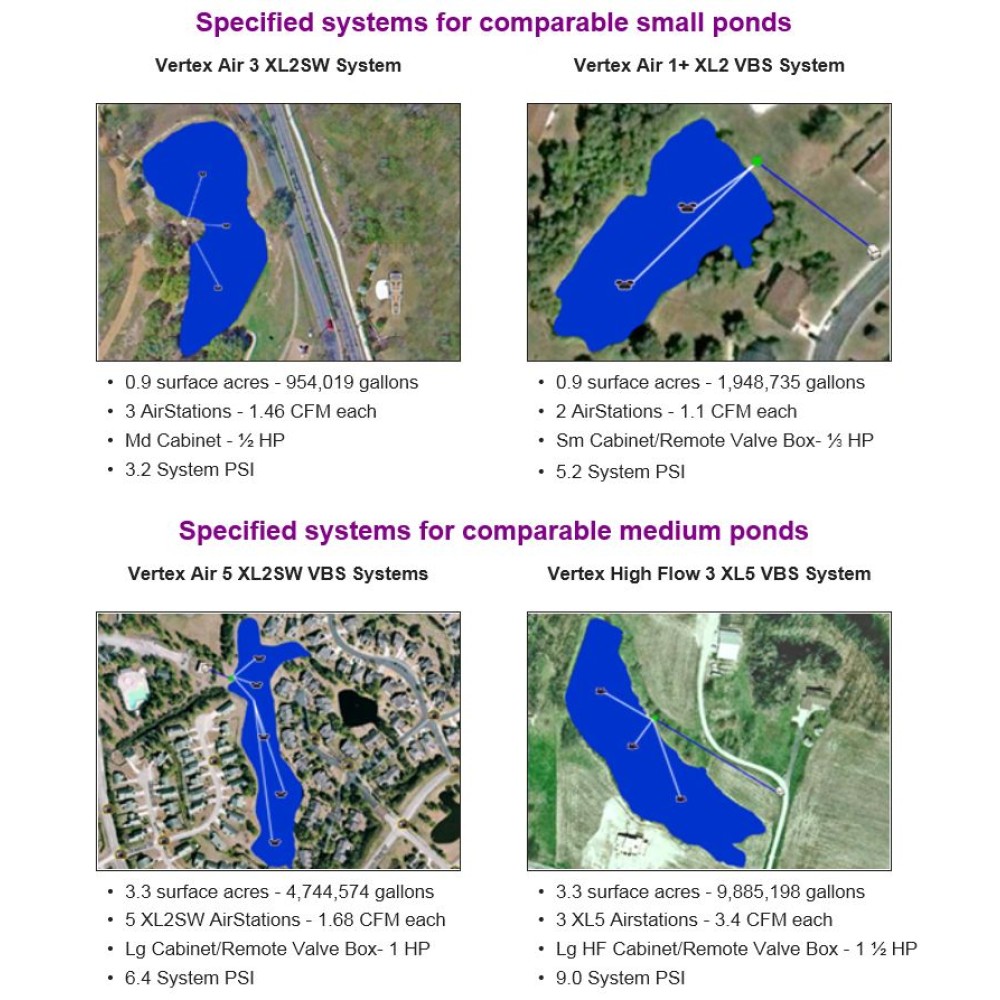

The best aquatic aeration system configuration to achieve consistent oxygen levels throughout the entire body of your pond, lake, canal, marina or reservoir is based on looking at multiple variables together. Designing an aeration system takes into account:

    Water Depth: We look at the range of depths in order to create the best turnover rate.

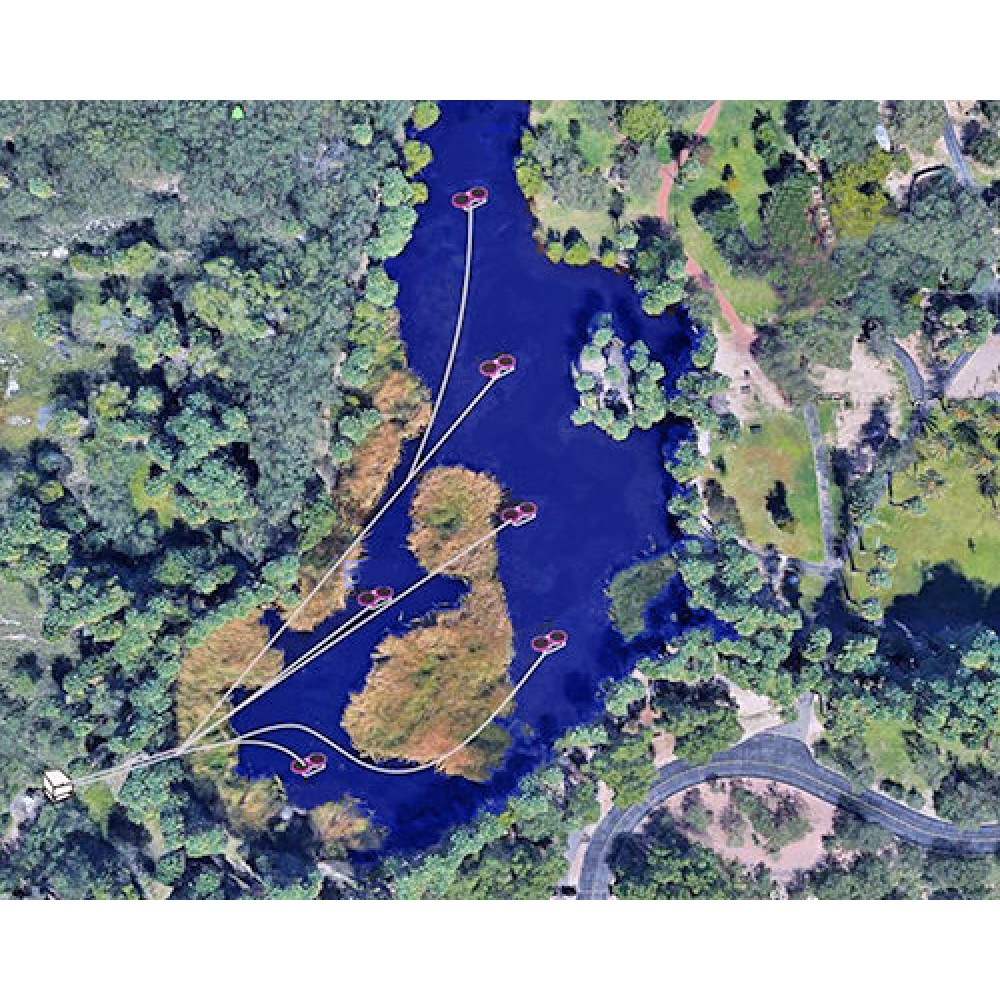

    Shape: This determines the number of AirStations needed to ensure the entire pond or lake gets the full effect of oxygenation.
    Acreage: Correctly sizing an aeration system will take into account the total size of your pond or lake.
    Power source: We can design your system based on what you have without costly updates.
    Cabinet Location:  If your system will be located near activities or in quiet areas we can reduce the sound.

We have years of training and experience specifying aeration systems for all types and sizes of ponds, lakes, marinas, canals and reservoirs. We will help design the most efficient and cost effective system for your unique water body.

Vertex diffused aeration systems are super-efficient, affordable and safe. The rising force of millions of bubbles transports bottom water to the surface, allowing oxygen to be absorbed and circulating the entire water column.

Benefits

• High pumping rate easily penetrates stratification layers
• Promotes beneficial bacteria growth
• Prevents low oxygen fish kills
• Reduces nutrient levels and associated algae growth
• Oxidizes/reduces bottom muck
• Expands oxygenated habitat for improved fisheries
• Reduces aquatic midge and mosquito insect hatches
• Eliminates foul odors from undesirable dissolved gases



Getting the right system requires knowing the acreage, depth, shape and slope and location of power source. Contact us for free design recommendations.

Download More Information on popular Vertex systems
1/3 HP Aeration Systems
1/2 HP Aeration Systems
1 HP Aeration Systems
3 - 4 HP Aeration Systems
Multiple sizes available, contact us for information or questions regarding installation or for help sizing the correct Vertex aeration system.

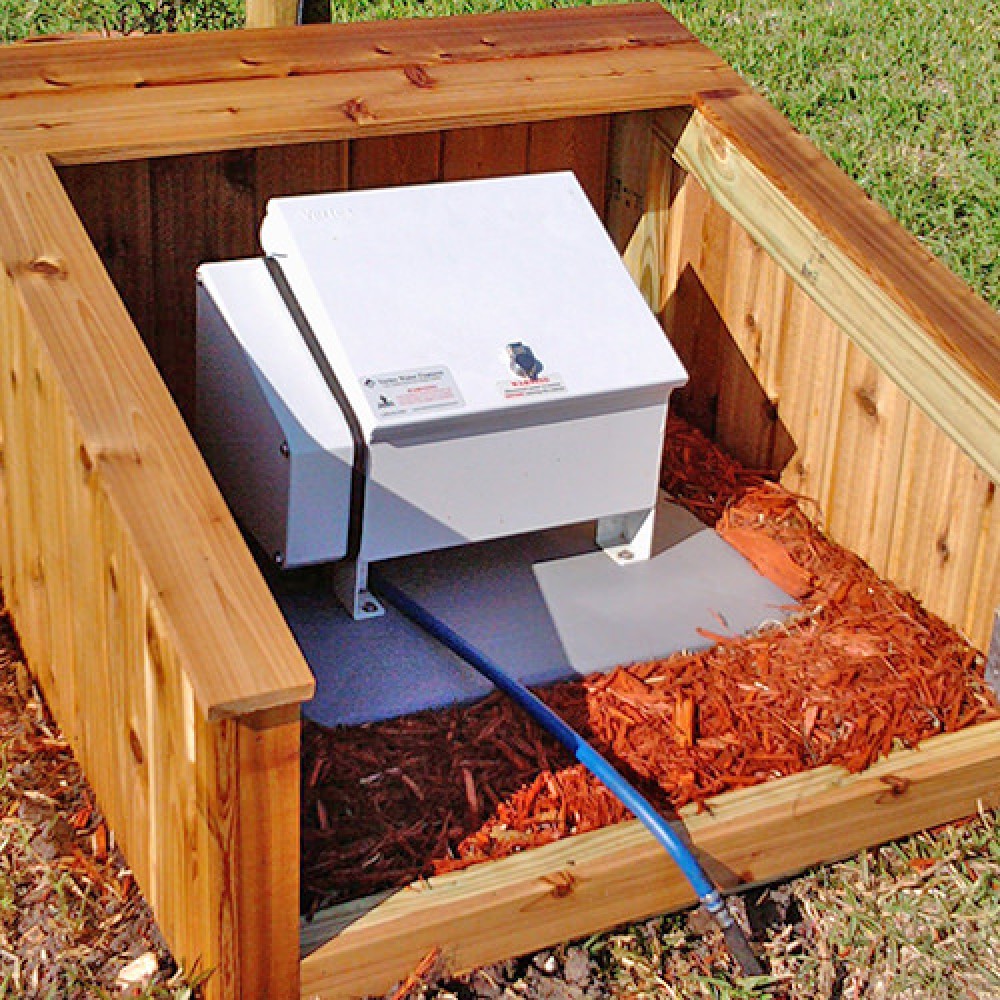

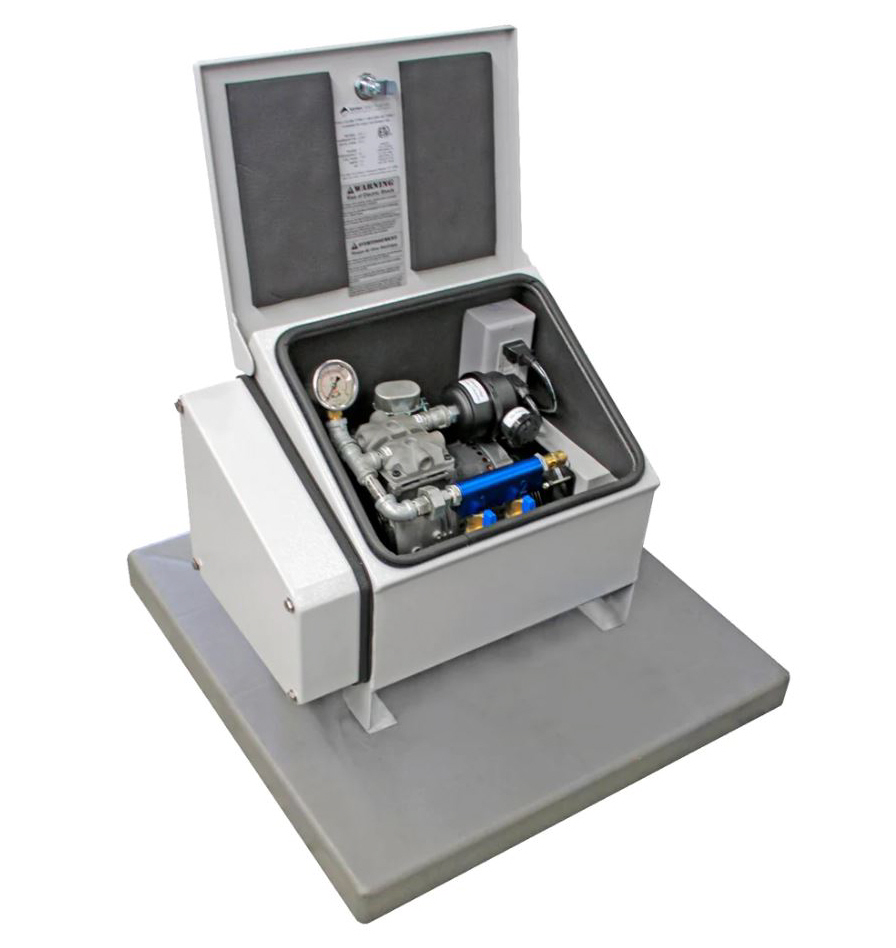

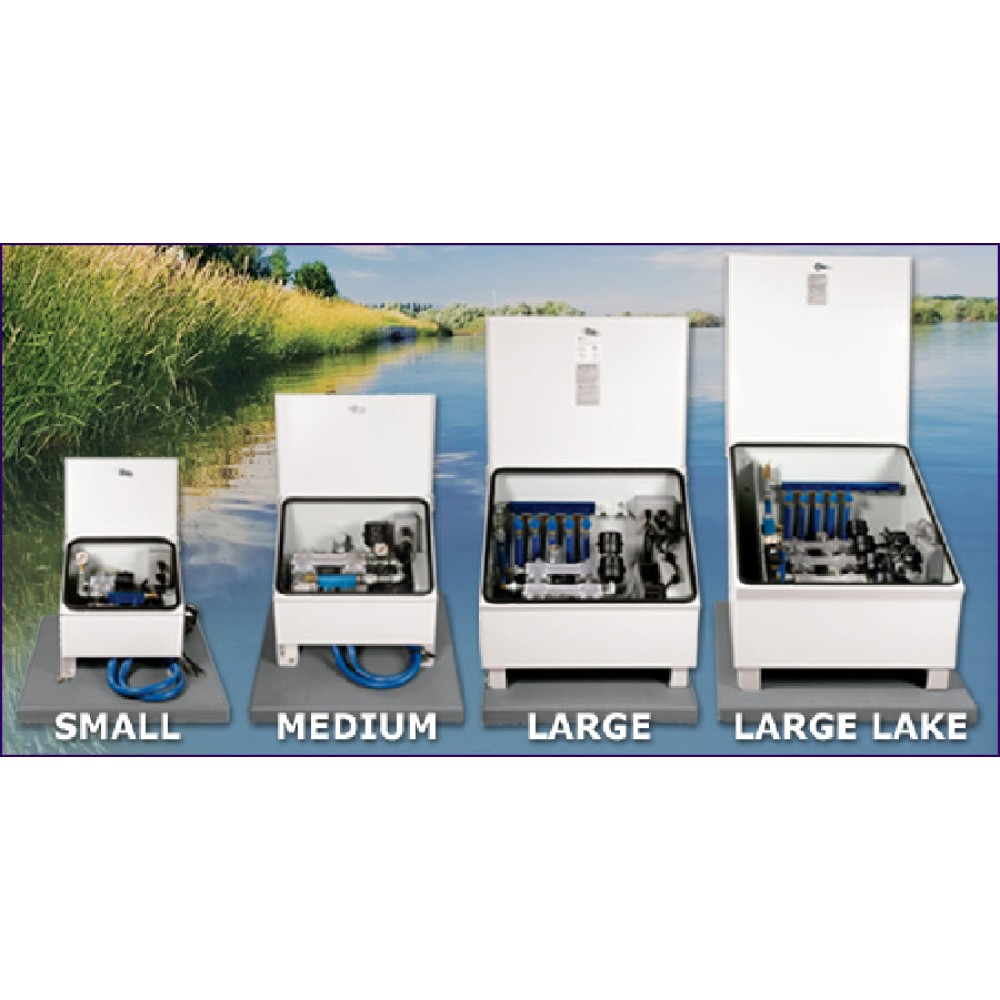

QuietAir Cabinet

Enclosure comes equipped with barrel lock for security, fully gasketed and constructed of aluminum with gray electrostatically-bonded powder coating to provide lifetime warranty against rust. Enclosure furnished with stamped ventilation grill to insure forced air circulation and an integral cooling fan with thermal protection, producing 290 CFM to guard against excessive compressor operating temperatures. This system is equipped with Vertex SafeStart technology allowing auto restart under maximum rated pressure without motor damage. Cabinet provided with HDPE mounting pad. Enclosure comes equipped with class A GFIC circuit protection for all electrical components. 230 volt systems require the purchaser to provide GFIC protection on their electrical supply circuit.

• Class "A" GFCI protection on all circuits
• Powder coated aluminum for a durable & attractive finish
• High capacity 290 CFM cooling fans
• Quiet operation with gasketed and sealed openings
• Easy access design with oversized lid
• Equipped with a barrel lock for increased security
• Easy plug-in connection to waterside electrical service
• Heavy duty mounting pad included
• Limited lifetime cabinet warranty against rust and corrosion.

Brookwood Rocking Piston Compressors

• Built for continuous 24/7 operation
• Upgraded rotors, stators, valve plates, bearings and capacitors
• Highest flow rate of any compressor in its class
• Vertex SafeStart™ Technology for auto restart under maximum rated pressure without motor damage
• Thermal overload protection
• Oil-free, and require no lubrication
• 2-3 year extended duty cycle between scheduled maintenance

Built for continuous 24/7 operation. Super-duty Brookwood HighFlow compressors incorporate upgraded rotors, stators, bearings and capacitors and are thermally protected, oil-free, and require no lubrication; just periodic replacement of air filter. Extended duty cycle is approximately 2 to 4 years for compressor service, about 2 to 4 times the duty cycle of ordinary piston and rotary vane compressors. All Brookwood HighFlow compressors carry a 2-year warranty.

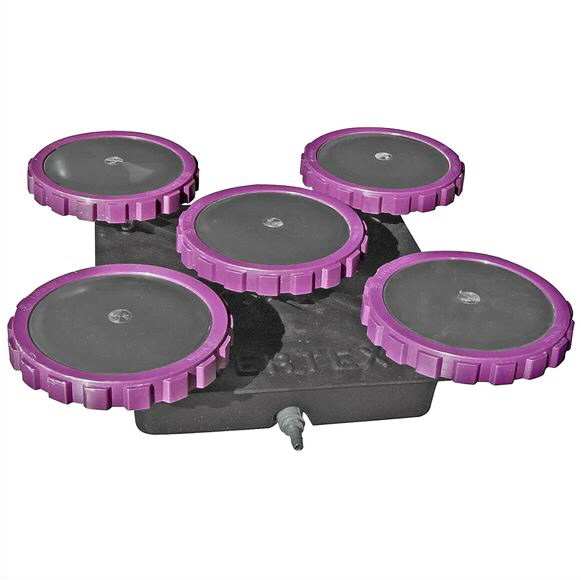

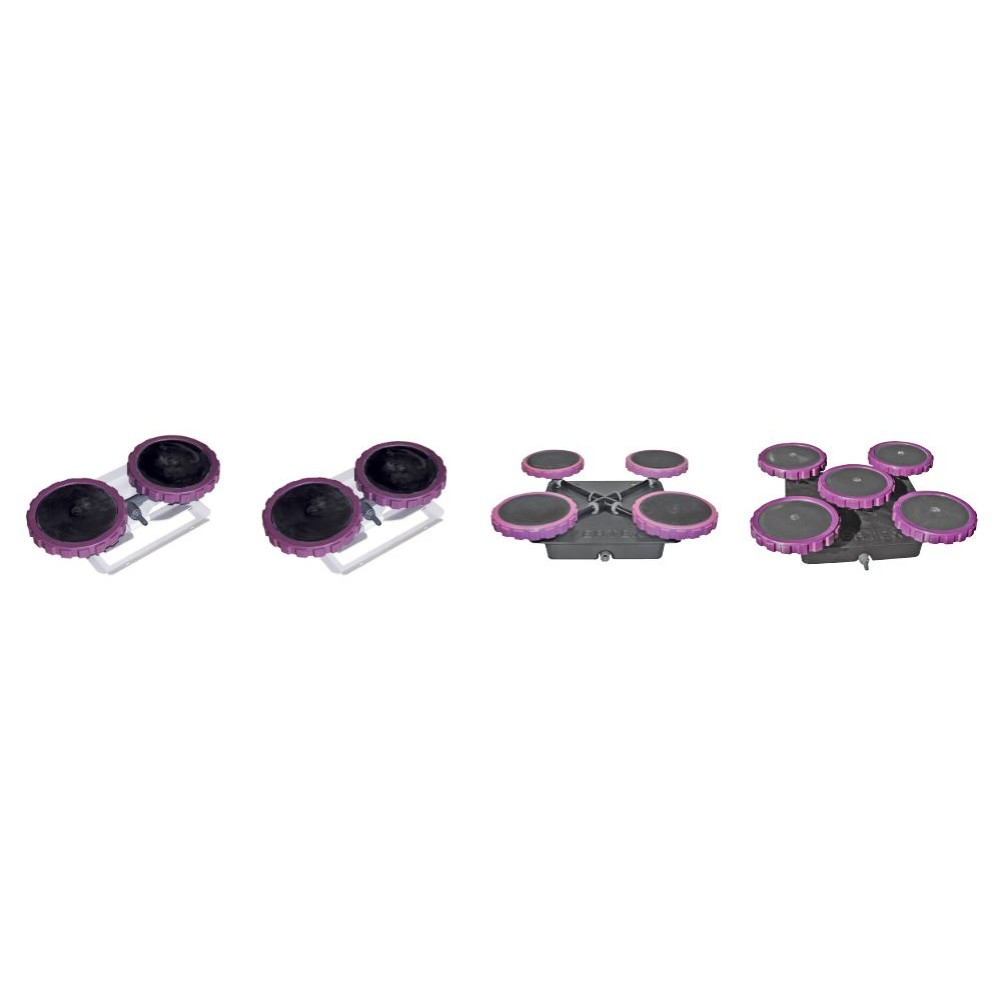

 Co-Active Airstations

Diffuser station consists of self-cleaning, 9" diameter, flexible-membrane diffusers of EPDM compound with 100% rebound memory, each producing millions of fine 500 to 3000 micron bubbles. Includes FlowControl technology that equalizes airflow to all diffusers on uneven bottoms and StableTrak technology which stabilizes the bubble column increasing pumping velocity.  Diffuser stations made of powder-coated stainless steel or larger models constructed of vacuum-formed HDPE with sonic spot-welding to provide unit integrity. Steel-base models are self-sinking and the HDPE units have a hollow chamber design for the addition of inert pea gravel ballast and have lipped design to prevent settling into soft bottom sediments.

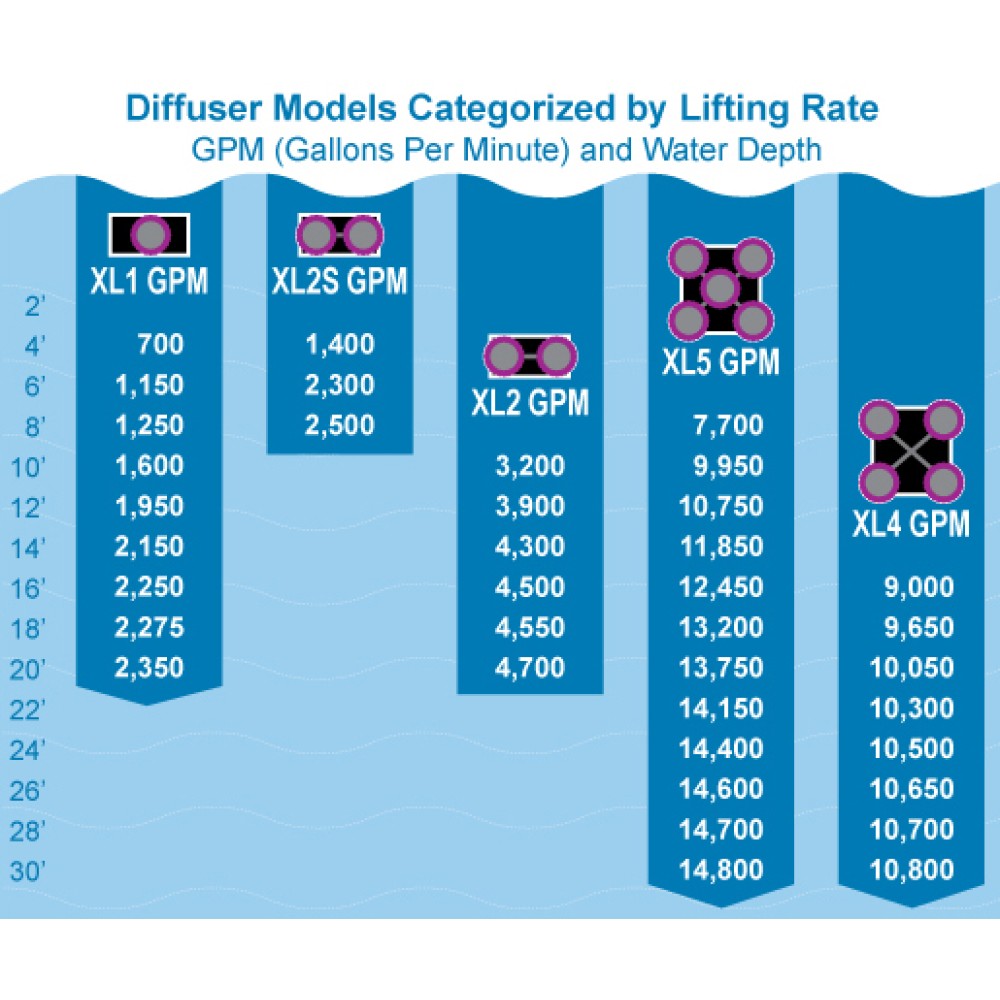

• Pumping capacity up to 14,300 GPM
• Huge lifting surface
• StableTraktechnology stabilizes air column increasing lift velocity
• FlowControl technology equalizes airflow to all diffusers on uneven bottoms
• 5-year warranty
