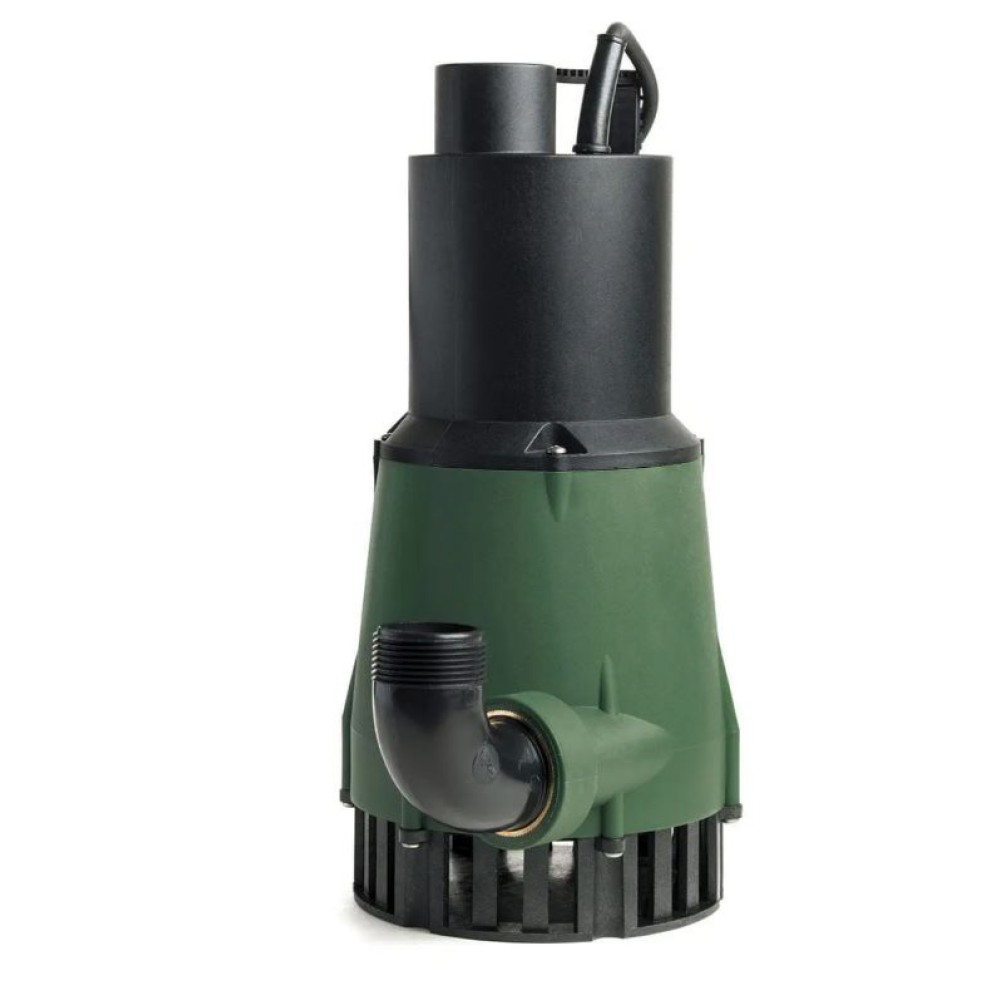

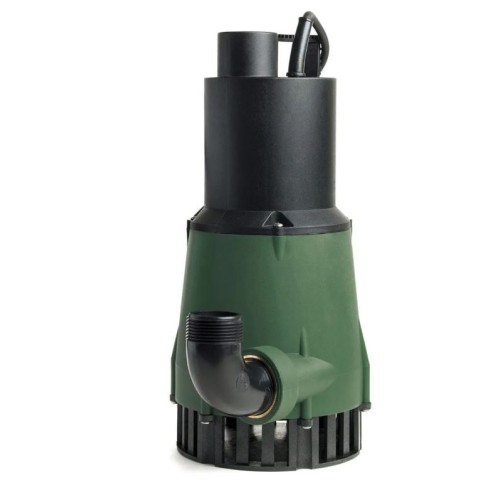

Nova is a submersible pump for draining clear water in domestic and residential environments. Nova can also be used for emptying tanks or cisterns, for water gardening, waterfalls, drainage and flood prevention, and as a portable pump in emergency situations where water needs to be drained from flooded rooms.

CONSTRUCTION FEATURES OF THE PUMP
The pump body, the impeller and the suction grille are in technopolymer. Robust and reliable with triple sealing in oil bath. The pump allows the suction of the liquid up to the minimum level of 10 mm and the possibility of dry operation up to 1 minute.

CONSTRUCTION FEATURES OF THE MOTOR
Continuous duty asynchronous submersible motor. Stator inserted in a hermetic stainless steel casing and rotor mounted on oversized ball bearings. Thermal protection incorporated in all single-phase versions. The motor is in AISI 304 stainless steel and the shaft is in AISI 431 steel for greater resistance to corrosive attacks.

Four DAB Nova Pump Models Available
Nova: Features a traditional side/horizontal delivery outlet.
Nova Up: Features a vertical delivery outlet making it narrower and much better suited for installation in tight spaces

Download the Technical Data Sheet for Nova Pumps

DAB Nova 180 MNA Model: 60200868H Flow rate maximum: 1200 GPH Head up to: 15 ft Outlet: 1-1/4" Power: 0.2 kW (0.3 HP) Volts: 120	DAB Nova 200 MNA Model: 60200869H Flow rate maximum: 3300 GPH Head up to: 22 ft Outlet: 1-1/4" Power: 0.22 kW (0.3 HP) Volts: 120
DAB Nova Up 300 MNA Model: 60164181 Flow rate maximum: 3300 GPH Head up to: 25 ft Outlet: 1-1/4" Power: 0.24 kW (0.31 HP) Volts: 120	DAB Nova 600 MNA Model: 60200870H Flow rate maximum: 4500 GPH Head up to: 33.5 ft Outlet: 1-1/4" Power: 0.5 kW (0.7 HP) Volts: 120
