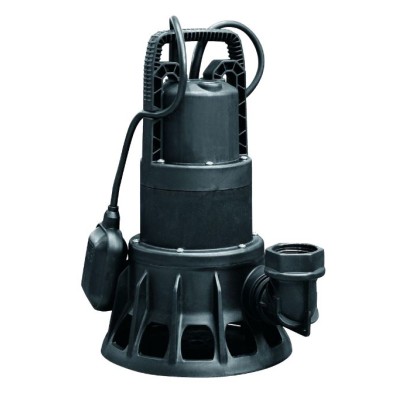

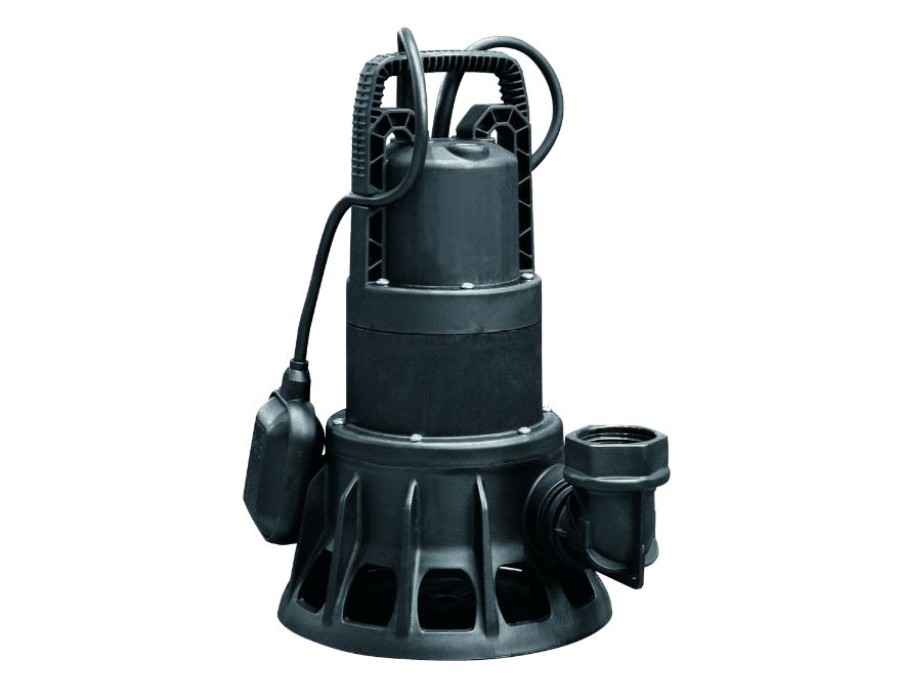

FEKA BVP submersible sump pumps for drainage, emptying, pumping water between containers, circulating water in garden ponds, and creating waterfalls and water features.

Suitable to pump clear water containing particles with a maximum diameter of up to 1”½.
SKU: FEKA BVP 700 M-A  60152204H

TECHNICAL DATA

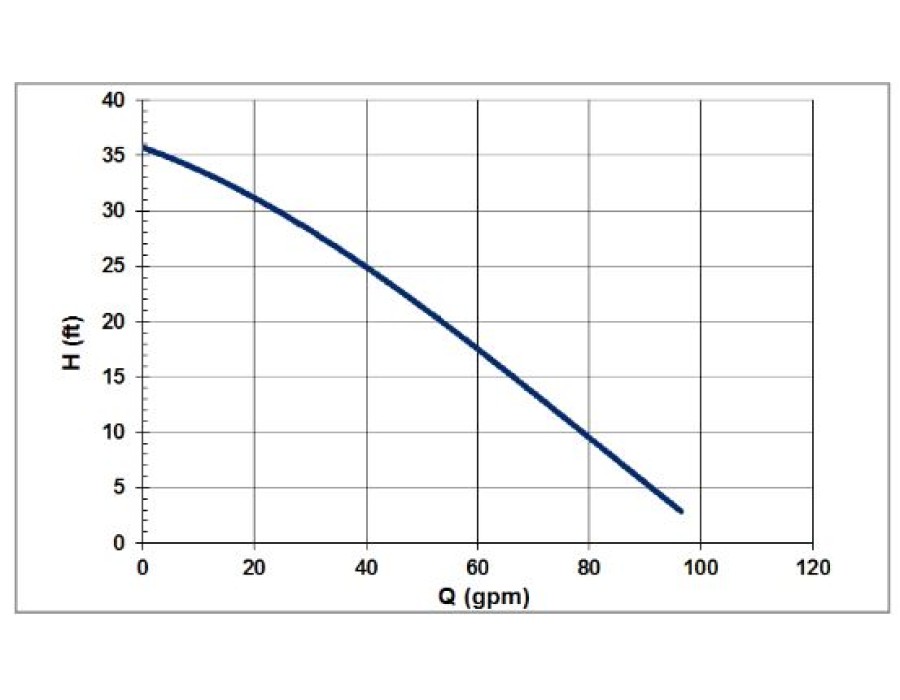

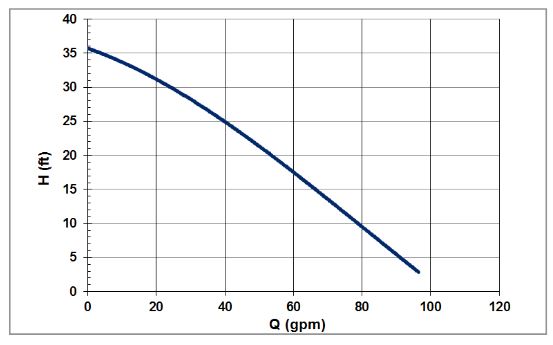

    Operating Range: Maximum flow 6600 GPH, see spec curves, with a head up to 39ft (17 psi)
    Liquid quality requirements: Clean, free from solids or abrasive substances, non viscous, non aggressive, non crystallized, chemically neutral, close to the characteristics of water

    Maximum solids: 1.5”
    Maximum ambient temp. 104°F
    Maximum operating pressure: 17 psi
    Cord length: 16Ft
    Installation: fixed or portable in a vertical position


Constructional features of the pump

    Technopolymer pump body.
    Technopolymer impeller, diffuser, self-priming disc.
    Anti-debris stainless steel strainer.


Constructional features of the motor

    Induction motor, closed and cooled with liquid being pumped
    Wear resistant shaft with triple lip seals to ensure a long life.
    Built-in thermic overload protection
    Capacitor permanently in circuit.
    Manufactured according to UL 778 -2010 & CSA 108-1
    Motor protection: NEMA6P
    Insulation class: F
    Cable Length: 16ft
    Standard voltage: 115v 60Hz


Details:

    Horsepower: 0.95
    Shut Off: 39’
    Power Cord: 16’
    Voltage: 115v
    Phase: 1
    Hertz: 60
    Max Watts: 1100
    Discharge: 1 1/2”
    Weight: 18 lbs
    Length: 9.4”
    Width: 9.4”
    Height: 15.7”

    Spec Sheet
